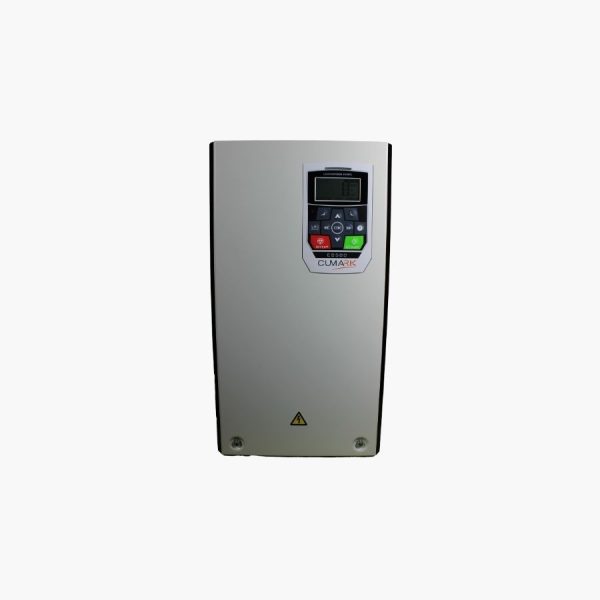

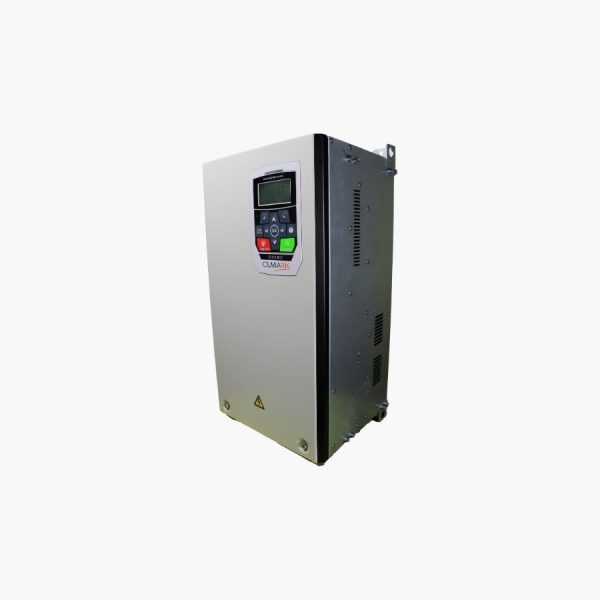

ES580

Cumark produces ES series high-performance vector frequency converters based on many years of experience in electric drive R&D and various industrial automation applications, together with international first-class drive technologies. With their high performance, rich functions and excellent structure, ES series products can meet industrial control demands from different fields in harsh environments and provide versatile competitive advantages such as excellent quality, friendly human-to-human interface and convenient services.

Performance

High reliability
Easy usability
High performance PID function feature
PM and AC motor software supported
DC reactor
Smart portable standard LCD keypad with Turkish language option
Compact design

Applications

Fan
Pump
Textile
Centrifugal
Compressor
mine crusher
Ventilation

ES580 Ürün Seçenekleri

380 Volt

Model Kodu	Derecelendirilmiş Değer		Genel Yük Uygulaması		Ağır Yük Uygulaması		Gürültü Seviyesi	Isı Radyasyonu	Hava Hacmi	Kasa Tipi
Model Kodu	İN(A)	I lmax(A)	İLd(A)	PLd(kW)	İHd(A)	I PHd(kW)	dBA	W	m3/h	Kasa Tipi
ES580-01-0K7G/1K5P-3B	5.2	7	5	1.5	2.5	0. 75	45	40	53	F1
ES580-01-1K5G/2K2P-3B	63	9	6	2.2	4.2	1.5	45	76	53
ES580-01-2K2G/4K0P-3B	10.5	15	9.8	4	5.6	2.2	45	97	53
ES580-01-4K0G/5K5P-3B	14	20	13.5	5.5	10.5	4	45	172	53
ES580-01-5K5G/7K5P-3B	18.2	25	17.5	7.5	14.5	5.5	45	210	53
ES580-02-7K5G/011P-3B	26.1	36	25	11.1	17.6	7.5	45	325	55	F2
ES580-02-011G-3B	28.1	35	26.1	15	25.1	11.1	45	420	55	F2
ES580-03-015G/018P-3B	41	57	38.6	18.5	4.2	15	57	550	145	F3
ES580-03-018G/022P-3B	17.2	67	15.2	22.1	10.2	18.5	57	660	145
ES580-03-022G/030P-3B	63.5	89	61	30	17.2	22.2	57	890	145
ES580-04-030G/037P-3/B	78	109	75	37	66	30	60	1114	290	F4
ES580-04-037G/045P-3/B	95	133	91	14.2	79	37	60	1140	290
ES580-04-045G/055P-3/B	120	168	115	55	94	14.2	60	1200	290
ES580-05-055G/075P-3/B	162	227	155	75	116	55	60	1440	350	F5
ES580-05-075G/090P-3/B	185	222	178	90	160	75	60	1940	350
ES580-05-090G/110P-3/B	225	270	215	110	179	90	67	2200	570
ES580-06-110G/132P-3	272	326	261	132	215	110	68	3300	685	F6
ES580-06-132G/160P-3	320	384	310	160	259	132	68	3850	685	F6
ES580-07-160G/200P-3	375	450	360	200	314	160	68	4100	720	F7
ES580-07-200G/220P-3	450	540	430	220	387	200	68	4600	720
ES580-07-220G/250P-3	487	584	470	250	427	220	68	5100	720
ES580-08-250G/280P-3	546	628	525	280	481	250	68	5782	1200	F8
ES580-08-280G/315P-3	624	718	600	315	550	280	68	6252	1200
ES580-08-315G/355P-3	686	789	660	355	616	315	68	7866	1200
ES580-09-355G/400P-3	760	874	730	400	671	355	68	9100	1300
ES580-09-400G/450P-3	865	995	830	450	759	400	68	9900	1300
ES580-09-450G/500P-3	950	1093	920	500	850	450	68	10500	1680	F9
ES580-09-500G/560P-3	1100	1265	1080	560	950	500	68	11500	1680
ES580-09-560G/630P-3	1200	1380	1150	630	1060	560	68	12600	1680
